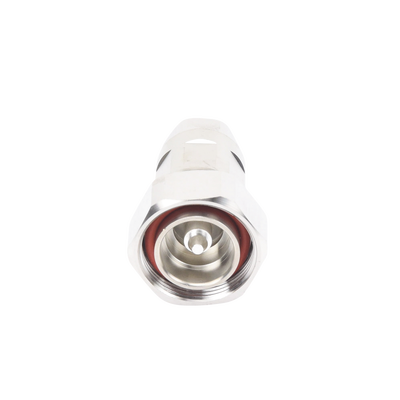

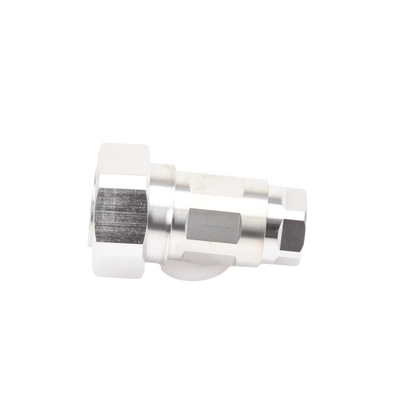

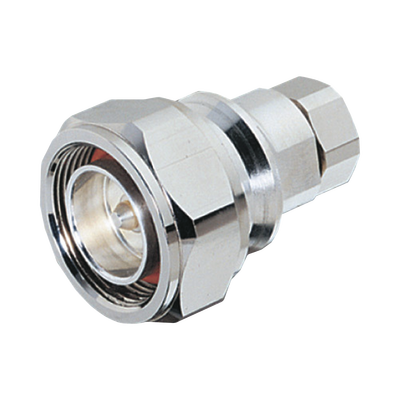

Conector DIN 7/16 Macho ANDREW / COMMSCOPE F4PDMV2-C Para Cable FSJ4-50B

Name: Conector DIN 7/16 Macho ANDREW / COMMSCOPE F4PDMV2-C Para Cable FSJ4-50B
SKU: F4PDMV2-C
Availability: InStock

SKU: F4PDMV2-C

$663.41

Stock disponible: 60

$663.41

60 disponibles

Envío económico - A

El producto se envía en 2 días hábiles

SKU: F4PDMV2-C Category: Heliax Tag: SYSCOM

Descripción

Electrical Specifications
Connector Impedance	50 ohm
Operating Frequency Band	0 – 7500 MHz
Average Power at Frequency	1.0 kW @ 900 MHz
Cable Impedance	50 ohm
3rd Order IMD, typical	-120 dBm @ 910 MHz
3rd Order IMD Test Method	Two +43 dBm carriers
RF Operating Voltage, maximum (vrms)	884.00 V
dc Test Voltage	2500 V
Outer Contact Resistance, maximum	1.50 mOhm
Inner Contact Resistance, maximum	0.80 mOhm
Insulation Resistance, minimum	5000 MOhm
Peak Power, maximum	15.60 kW
Insertion Loss, typical	0.05 dB
Shielding Effectiveness	-110 dB

Peso	0.16 kg
Dimensiones	5 × 8 × 5 cm
